Attaching or relocating the boom mic

Your headset may be shipped with the microphone assembly (boom microphone and cable) attached to the left side. If you prefer the microphone on your right or the microphone assembly was packed separately, you can attach it to either side:

On the left side, rotate the left side pad so the microphone connector is accessible

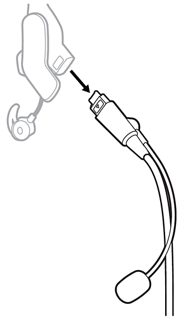

Push the release button on the microphone connector, and gently pull it from the left side socket

On the right side, rotate the right side pad so the terminator cover is accessible

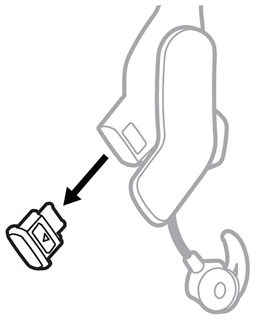

Push the release button on the terminator cover, and gently pull it from the right side socket

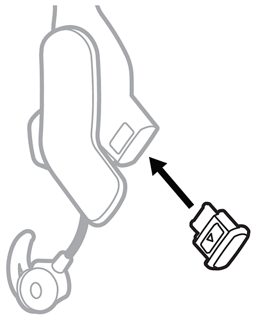

On the left side, align the release button on the terminator cover to the release button opening on the headset, then insert the cover into the left side socket until the release button is secure

Do not force the cover into the socket as it could damage the headset.

Be sure the cover is securely connected. If it is not, the headset will not product sound

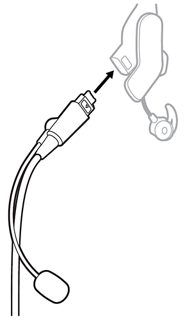

On the right side, align the release button on the microphone connector to the release button opening on the headset, then insert the connector into the headset socket until the release button is secure

Do not force the connector into the socket as it could damage the headset.

Be sure the cable is securely connected. If it is not, the headset will not produce sound.

Be sure to try the headset and test its operation before flight
