Removing the table stand

Applies to:

  • productshortname_dummy

Remove the table stand by following these steps:

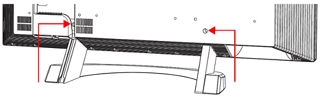

On the rear panel of the A/V monitor, pull the bottom of the connector cover outward and remove it.

Remove the two stand bolts using a 5/32" (4 mm) Allen wrench (not included).

Lift the A/V monitor off the stand.

Note: The display panel weighs nearly 100 lbs. Bose recommends that at least two people should be involved in lifting.
