Speaker placement

The Bose® Solo TV sound system is designed to be placed under your TV.

TV size limit

The Bose Solo system is designed for TVs that weigh no more than 40 lbs (18 kg) and have bases no wider than 20" (50.8 cm) and no deeper than 10.25" (26 cm). Most 32" TVs and smaller meet these requirements.

CAUTION: DO NOT place a CRT-type TV on this system. It is not designed for use with this type of TV.

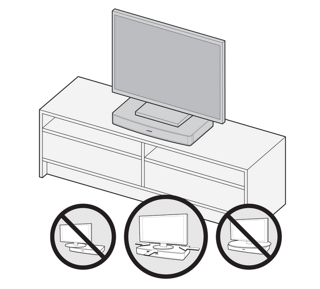

Placement guidelines

The base of your TV should be centered on the top of the system and must not hang over any of its edges

CAUTION: Allowing the base of your TV to hang over any edge of this speaker
system increases the risk of the TV tipping, which may result in injury.

If the TV base is too large to fit on top of the system, place the sound system in another location such as on an open shelf under the TV, but keep it close to your TV so the audio cable will reach. The system can also be placed under a wall-mounted TV

If placing the sound system backed up to a wall, make sure there is at least a
one-inch space between the wall and the rear of the system

If placing the sound system in a cabinet, or on a shelf, position the front of the system as close as possible to the front edge of the shelf for optimum audio performance

CAUTION: With any placement of this product, make sure the ventilation openings on the rear panel are not blocked.
