Setting up your system

Applies to:

  • productshortname_dummy

The VideoWave® entertainment system has two options for setup. It can either be set up using the attached table stand or the stand can be removed and the AV monitor can be attached to the wall.

To set up the system using the table stand, follow these steps:

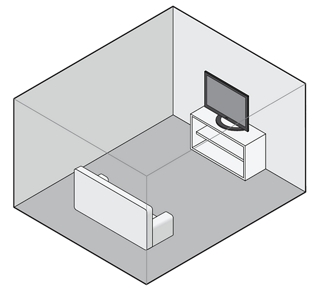

Place the A/V monitor on a stable, flat surface capable of supporting its weight.

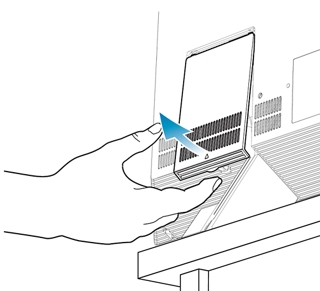

On the rear panel of the A/V monitor, firmly pull out on the bottom of the connector cover to remove it.

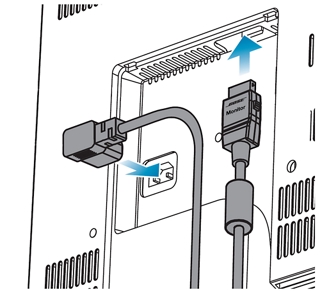

Attach the A/V monitor cable and AC power cord to the A/V monitor. Be sure the A/V monitor cable is pushed in slightly to release the snares holding it in place.

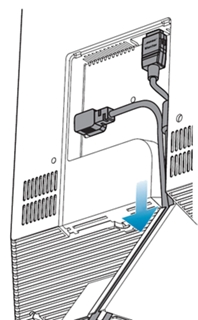

Route both cords through the leg of the stand and re-attach the connector cover.

Plug the other end of the AC power cord from the A/V monitor into a power outlet.

Bose strongly recommends using straps to help prevent the TV from tipping. To use the straps, follow these steps:

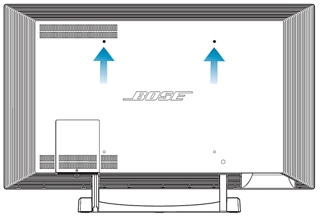

Using a 5/32" (4 mm) hex wrench (not included), remove the top two bolts from the rear panel of the A/V monitor.

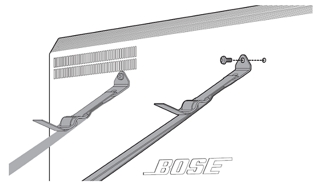

Using the same bolts, attach the two straps to the back of the A/V monitor.

Attach each strap to the nearest wall stud. Do not attach both straps to the same stud.

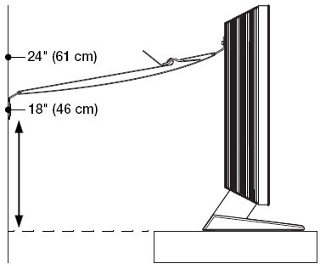

Hold the bracket on the end of each strap against the wall 18-24 inches (46-61 cm) above the tabletop. In the center of each wall stud, mark the location of the two holes in the bracket.


Using a 7/64" (3 mm) drill bit (not included), drill four pilot holes.

Secure each bracket to the wall using two of the provided screws.

Push A/V monitor as close to the wall as possible.

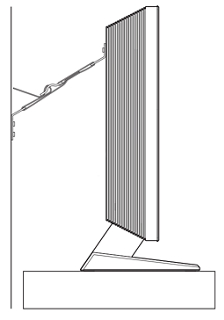

Tighten the straps to remove any slack between the A/V monitor and the wall.

Bundle the remaining length of the straps and secure them out of reach behind the A/V monitor.

On the back of the control console, insert the free end of the A/V monitor cable into the jack labeled: A/V OUT to Monitor. Again, be sure the A/V monitor cable is pushed in slightly to release the snares holding it in place.

Insert the power supply output cord into the Power jack on the control console.

Insert one end of the AC power cord into the power supply. Make sure to push the plug in as far as it can go.

Plug the other end of the power cord into a power outlet.

To set up the system using a wall mount, follow these steps:

Attach the wall-mounting brackets (not included) to the wall and A/V monitor according to the instructions included with the wall bracket. The A/V monitor is VESA compatible but articulating mounts should not be used.

On the rear panel of the A/V monitor, firmly pull out on the bottom of the connector cover to remove it.

Remove the two stand bolts using a 5/32" (4 mm) Allen wrench (not included).

Attach the A/V monitor cable and AC power cord to the A/V monitor. Be sure the A/V monitor cable is pushed in slightly to release the snares holding it in place.

Lift the A/V monitor off the stand.

Attach the A/V monitor to the wall according to the instructions included with the wall bracket.

Plug the other end of the AC power cord from the A/V monitor into a power outlet.

On the back of the control console, insert the free end of the A/V monitor cable into the jack labeled: A/V OUT to Monitor. Again, be sure the A/V monitor cable is pushed in slightly to release the snares holding it in place.

Insert the power supply output cord into the Power jack on the control console.

Insert one end of the AC power cord into the power supply. Make sure to push the plug in as far as it can go.

Plug the other end of the power cord into a power outlet.
